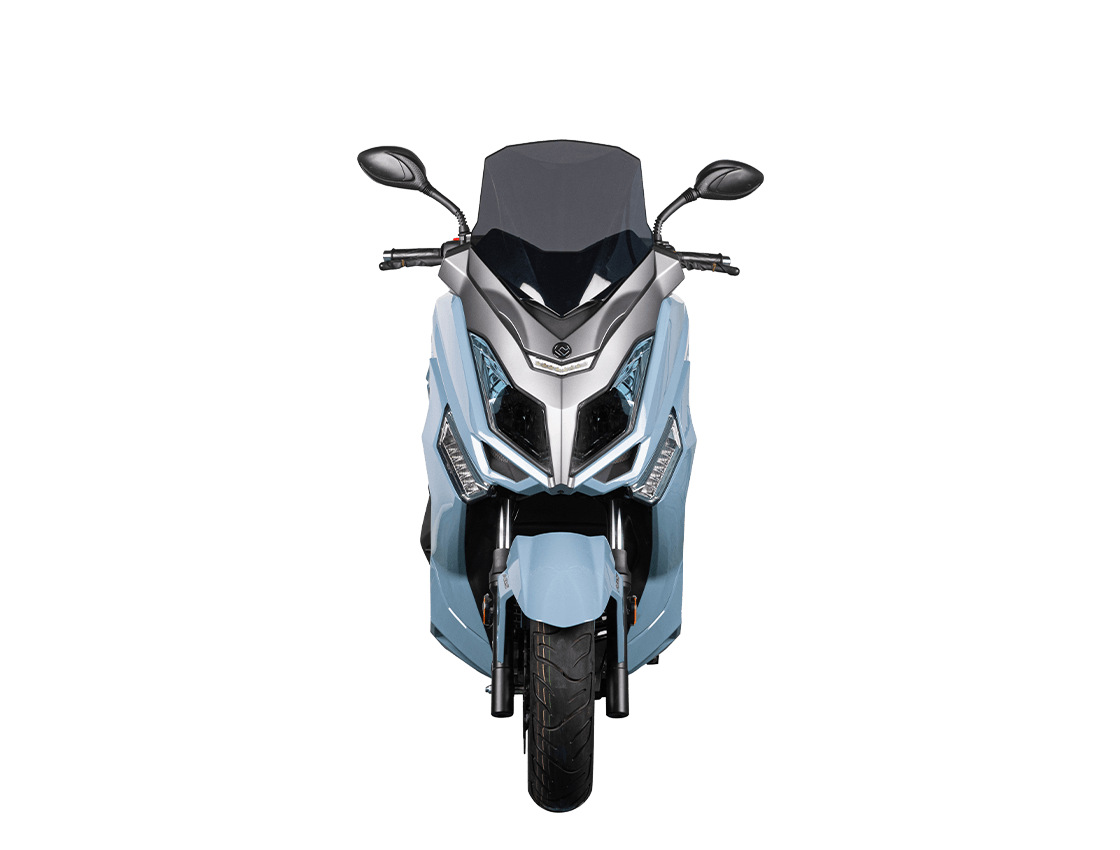

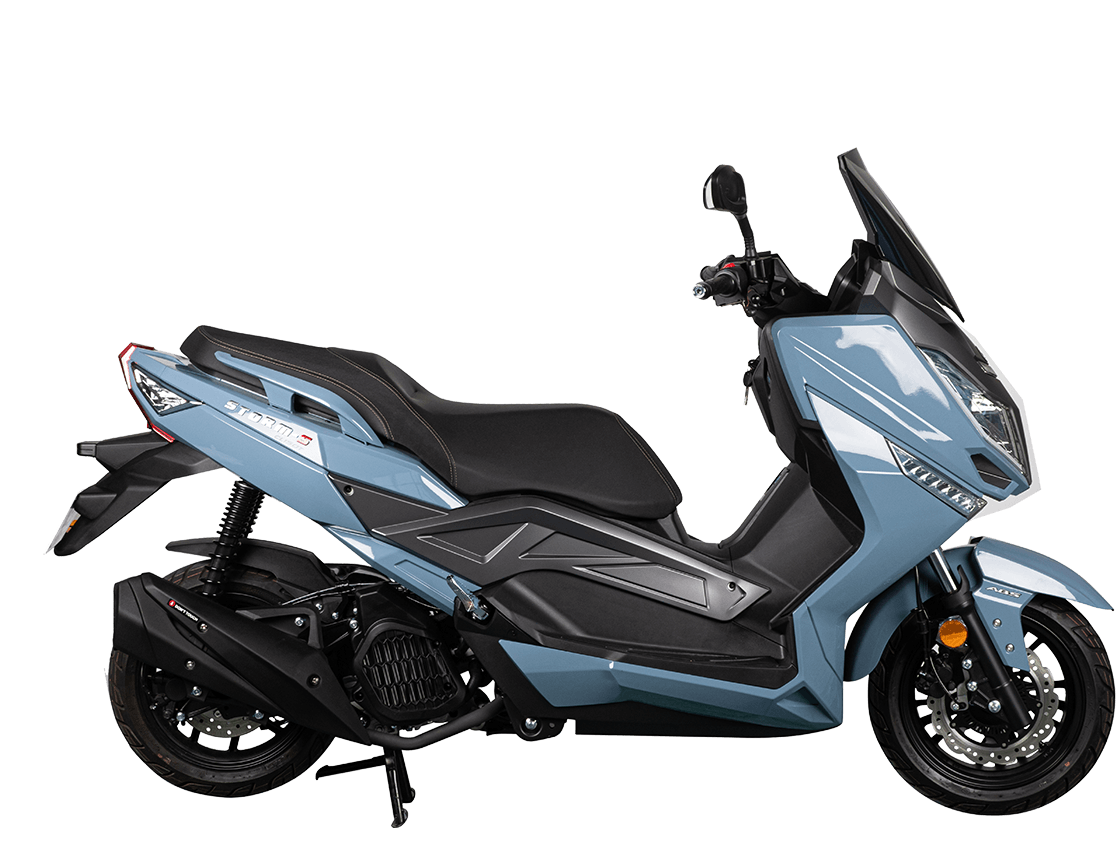

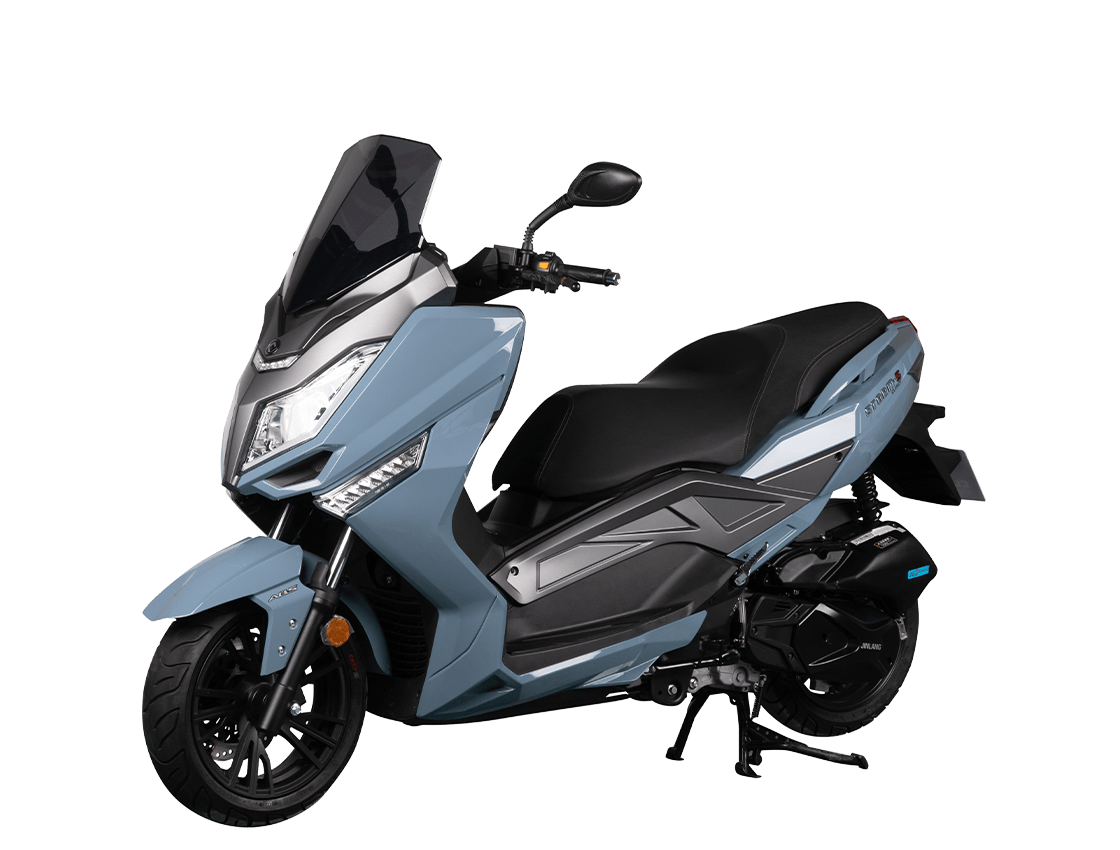

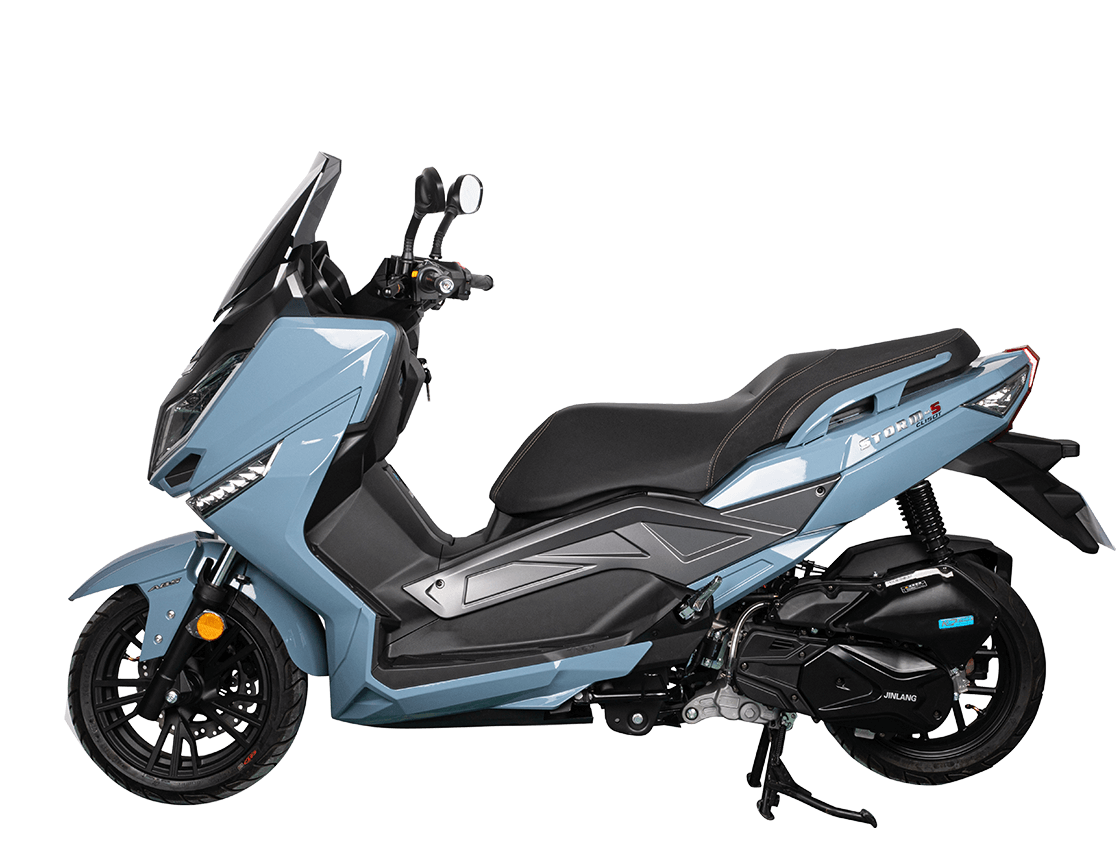

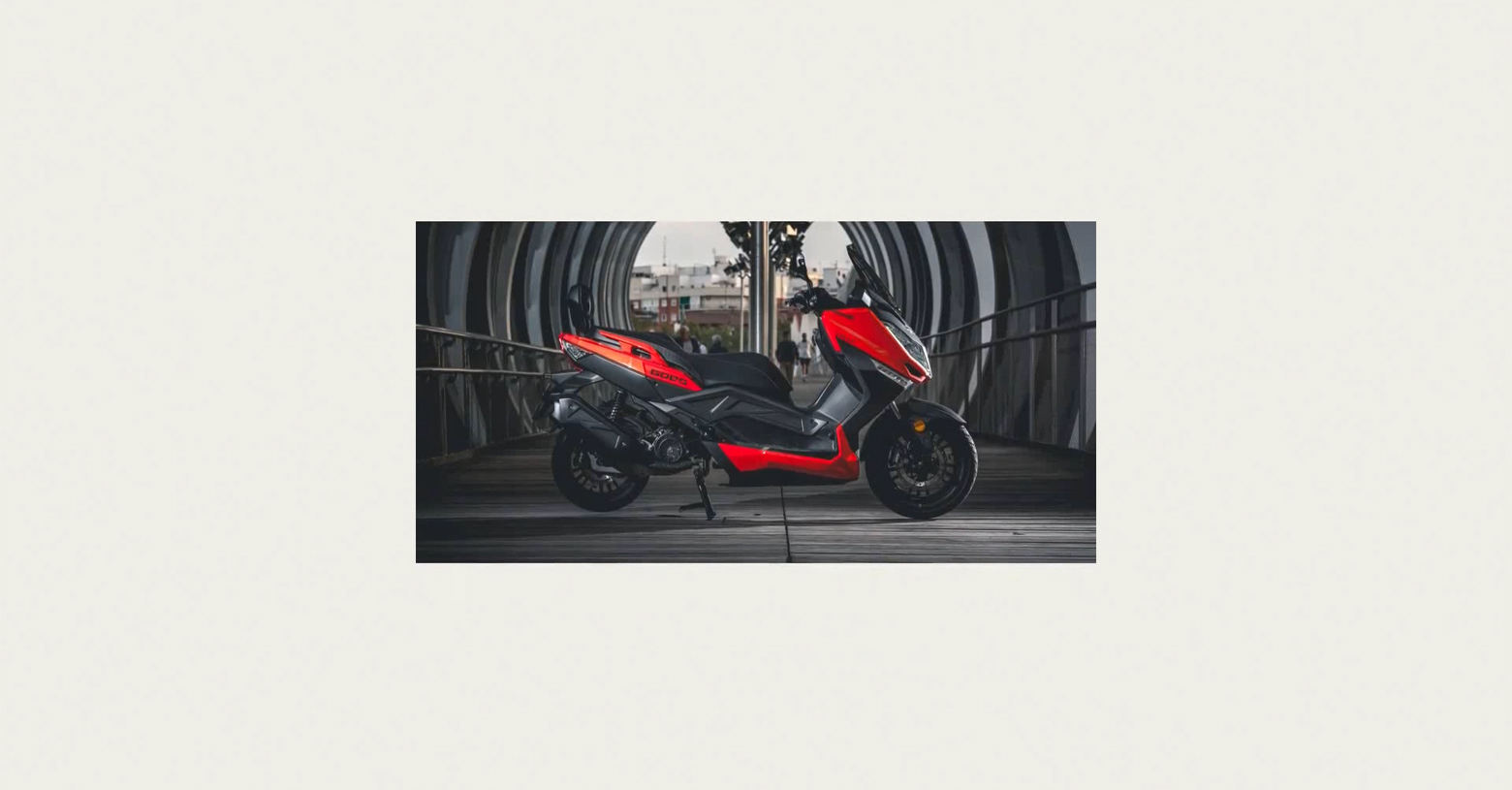

T9-ALEX ONE

T9-ALEX ONE

150 LC 125 AC 150 AC 170 AC

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

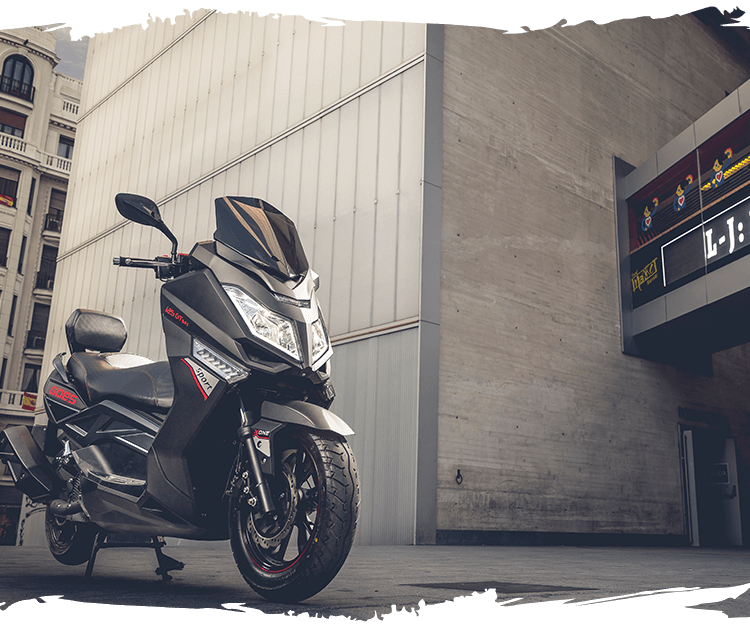

Riding the Wind into Battle

In the name of the track unleash every ounce of wildness!

ADVANTAGES

SPECIFICATIONS

T9 150CC LC

T9 125CC AC

T9 150CC AC

T9 170CC AC

Engine

Engine Type

OHC, liquid cooling, single-cylinder 4 stroke

Engine Displacement

149.6CC

Max. Power Output

10.5 KW / 8500 rpm

Max. Torque

14 Nm / 6500 rpm

Emission Standards

Chassis,Dimensions and Weight

Length x Width x Height (mm)

2120 x765x1330 mm

Seat Height(mm)

780

Wheelbase(mm)

1560

Kerb Weight (kg)

140

Wheels, Suspension and Brakes

Front brake

Single disc with CBS OR ABS+TCS

Rear brake

Single disc with CBS OR ABS+TCS

Tyres (Front/Rear)

Fr:120/80-14 Rr:130/60-13

Suspension Front

Telescopic fork

Suspension Rear

Twin shocks

Engine

Engine Type

OHC, air-cooled single-cylinder 4 stroke

Engine Displacement

124.6CC

Max. Power Output

6.5 KW / 7300 rpm

Max. Torque

9 Nm / 6000 rpm

Emission Standards

Euro V+ , EEC

Chassis,Dimensions and Weight

Length x Width x Height(mm)

2120 x765x1330 mm

Seat Height(mm)

780

Wheelbase(mm)

1560

Kerb Weight (kg)

140

Wheels, Suspension and Brakes

Front brake

Single disc with CBS

Rear brake

Single disc with CBS

Tyres (Front/Rear)

Fr:120/80-14 Rr:130/60-13

Suspension Front

Telescopic fork

Suspension Rear

Twin shocks

Engine

Engine Type

OHC, air-cooled single-cylinder 4 stroke

Engine Displacement

149.6CC

Max. Power Output

7.3 KW / 7500 rpm

Max. Torque

10.1 Nm / 5500 rpm

Emission Standards

Chassis,Dimensions and Weight

Length x Width x Height(mm)

2120 x765x1330 mm

Seat Height(mm)

780

Wheelbase(mm)

1560

Kerb Weight (kg)

140

Wheels, Suspension and Brakes

Front brake

Single disc with CBS

Rear brake

Single disc with CBS

Tyres (Front/Rear)

Fr:120/80-14 Rr:130/60-13

Suspension Front

Telescopic fork

Suspension Rear

Twin shocks

Engine

Engine Type

Air-cooled single-cylinder 4 stroke

Engine Displacement

168.9CC

Max. Power Output

8.3 KW / 7000 rpm

Max. Torque

12 Nm / 5500 rpm

Emission Standards

EPA

Chassis,Dimensions and Weight

Length x Width x Height (mm)

2120 x765x1330 mm

Seat Height(mm)

780

Wheelbase(mm)

1560

Kerb Weight (kg)

140

Wheels, Suspension and Brakes

Front brake

Single disc with CBS OR ABS

Rear brake

Single disc with CBS OR ABS

Tyres (Front/Rear)

Fr:120/80-14 Rr:130/60-13

Suspension Front

Telescopic fork

Suspension Rear

Twin shocks
