D SERIES D SERIES
D02-VAMPIRE
D02-VAMPIRE
Max. Power Output (kw/rpm)
0
0r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0r/min
Wheelbase (mm)
0
Max. Power Output (kw/rpm)
0
0r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0r/min
Wheelbase (mm)
0
Max. Power Output (kw/rpm)
0
0r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0r/min
Wheelbase (mm)
0
Max. Power Output (kw/rpm)
0
0r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0r/min
Wheelbase (mm)
0
ADVANTAGES
SPECIFICATIONS
Engine
Engine Type
Liquid-cooled single-cylinder 4 valve,Auto start-stop Silence start
Engine Displacement
149.6CC
Max. Power Output
10.5 / 13.5 KW / 8500 rpm
Max. Torque
14 /17.2 Nm / 6500 rpm
Emission Standards
EPA
Chassis,Dimensions and Weight
Length x Width x Height (mm)
1960x695x1165
Seat Height(mm)
770
Wheelbase(mm)
1375
Kerb Weight (kg)
138/127
Wheels, Suspension and Brakes
Front brake
Single disc Φ240mm with CBS or ABS+TCS
Rear brake
Single disc Φ220mm with CBS or ABS+TCS
Tyres (Front/Rear)
Fr:110/70-14 Rr:130/70-13
Suspension Front
Telescopic fork

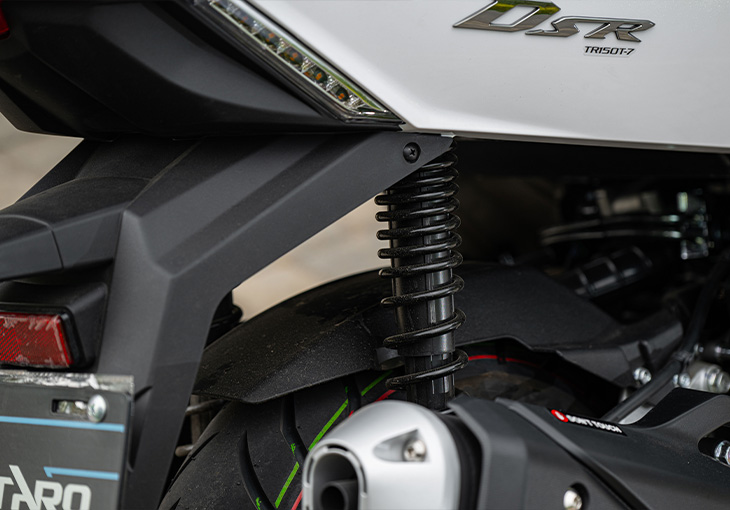

Suspension Rear
Twin shocks
Engine
Engine Type
AIR-cooled single-cylinder 4 stroke
Engine Displacement
168.9CC
Max. Power Output
8.3 KW / 7000 rpm
Max. Torque
12 Nm / 5500 rpm
Emission Standards
EPA
Chassis,Dimensions and Weight
Length x Width x Height (mm)
1960x695x1165
Seat Height(mm)
770
Wheelbase(mm)
1375
Kerb Weight (kg)
136/125
Wheels, Suspension and Brakes
Front brake
Single disc Φ240mm with CBS
Rear brake
Single disc Φ220mm with CBS
Tyres (Front/Rear)
Fr:110/70-14 Rr:130/70-13
Suspension Front
Telescopic fork
Suspension Rear
Twin shocks
Engine
Engine Type
Liquid-cooled single-cylinder 4 stroke,Auto start-stop Silence start
Engine Displacement
124.9CC
Max. Power Output
8.3 KW / 8500 rpm
Max. Torque
11.2 Nm / 6500 rpm
Emission Standards
Euro V+
Chassis,Dimensions and Weight
Length x Width x Height (mm)
1960x695x1165
Seat Height(mm)
770
Wheelbase(mm)
1375
Kerb Weight (kg)
138/127
Wheels, Suspension and Brakes
Front brake
Single disc Φ240mm with CBS or ABS+TCS
Rear brake
Single disc Φ220mm with CBS or ABS+TCS
Tyres (Front/Rear)
Fr:110/70-14 Rr:130/70-13
Suspension Front
Telescopic fork
Suspension Rear
Twin shocks
Engine
Engine Type
AIR-cooled single-cylinder 4 stroke
Engine Displacement
123.9CC
Max. Power Output
6.8 KW / 7500 rpm
Max. Torque
9.8 Nm / 6000 rpm
Emission Standards
Euro V+
Chassis,Dimensions and Weight
Length x Width x Height (mm)
1960x695x1165
Seat Height(mm)
770
Wheelbase(mm)
1375
Kerb Weight (kg)
135/124
Wheels, Suspension and Brakes
Front brake
Single disc Φ240mm with CBS
Rear brake
Single disc Φ220mm with CBS
Tyres (Front/Rear)
Fr:110/70-14 Rr:130/70-13
Suspension Front
Telescopic fork
Suspension Rear
Twin shocks
