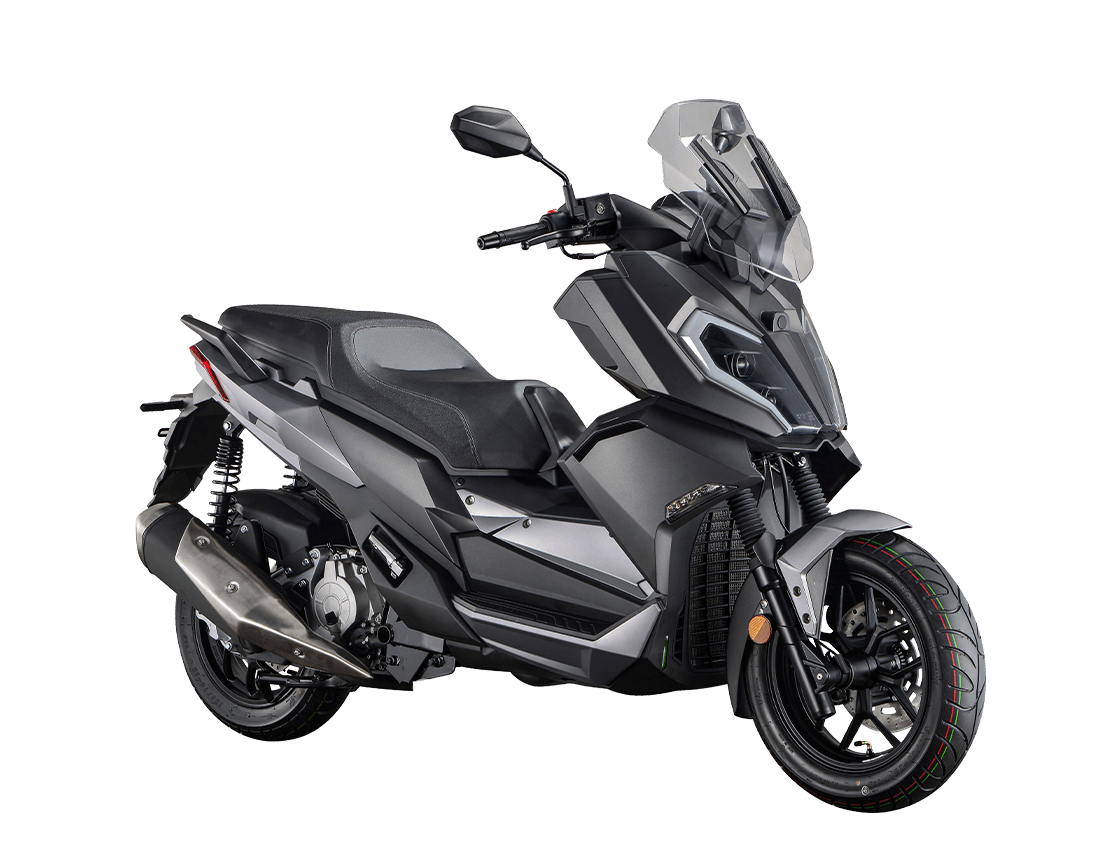

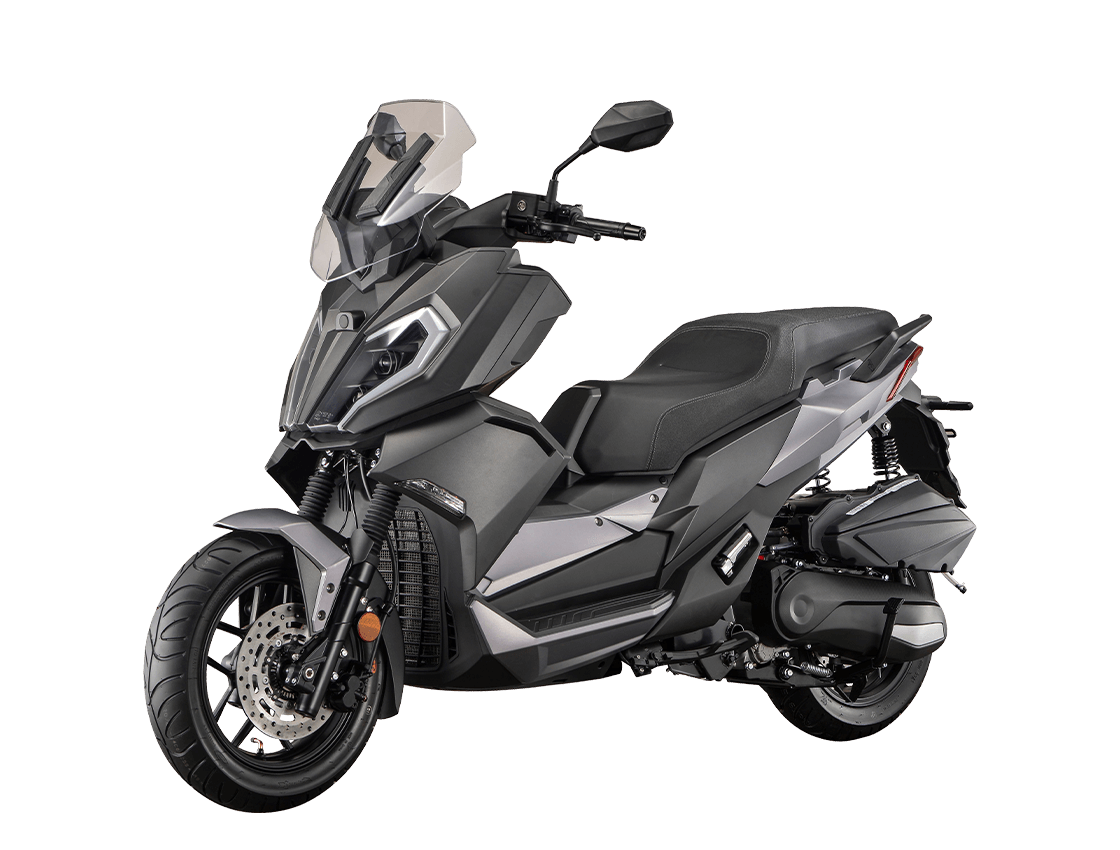

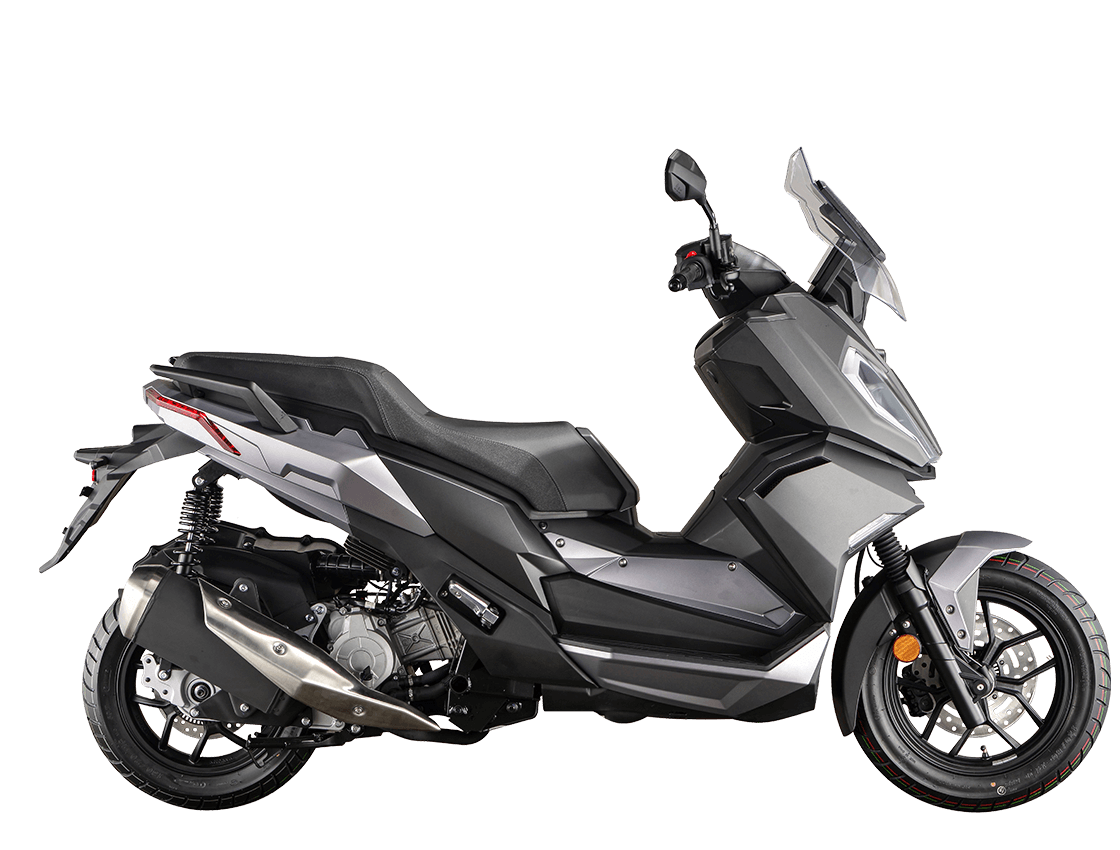

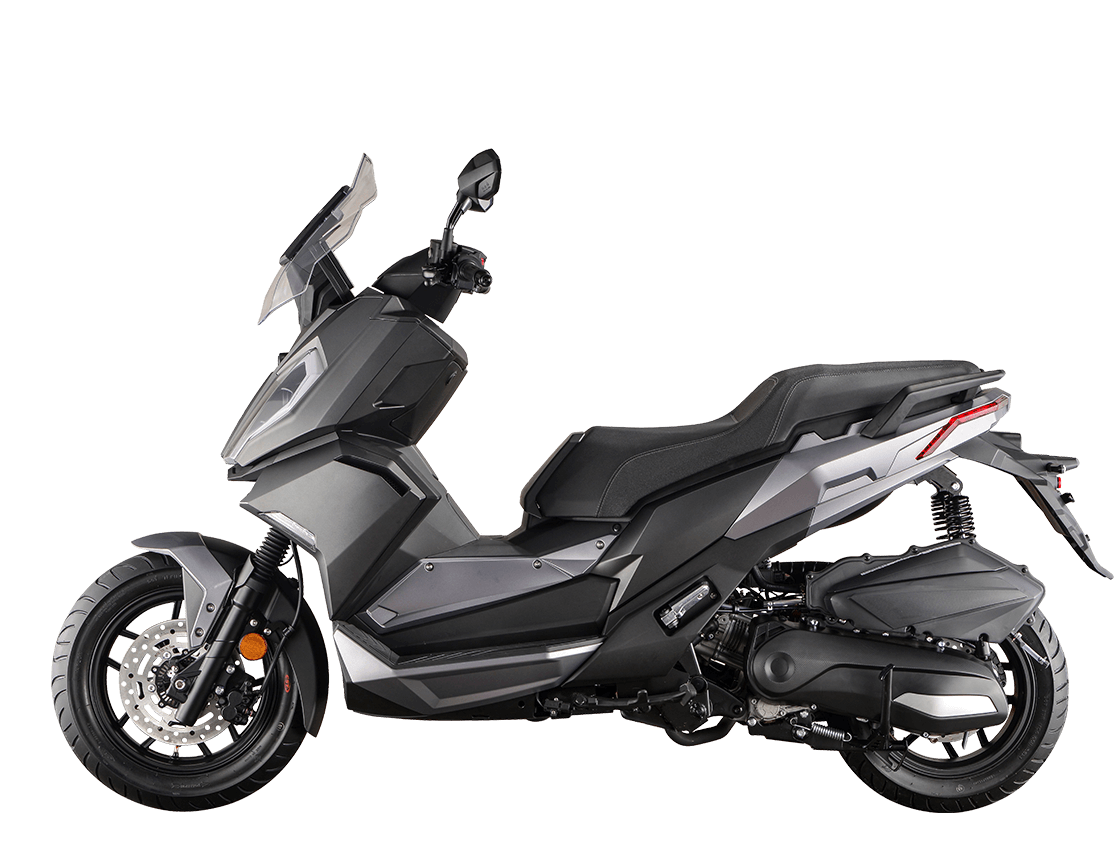

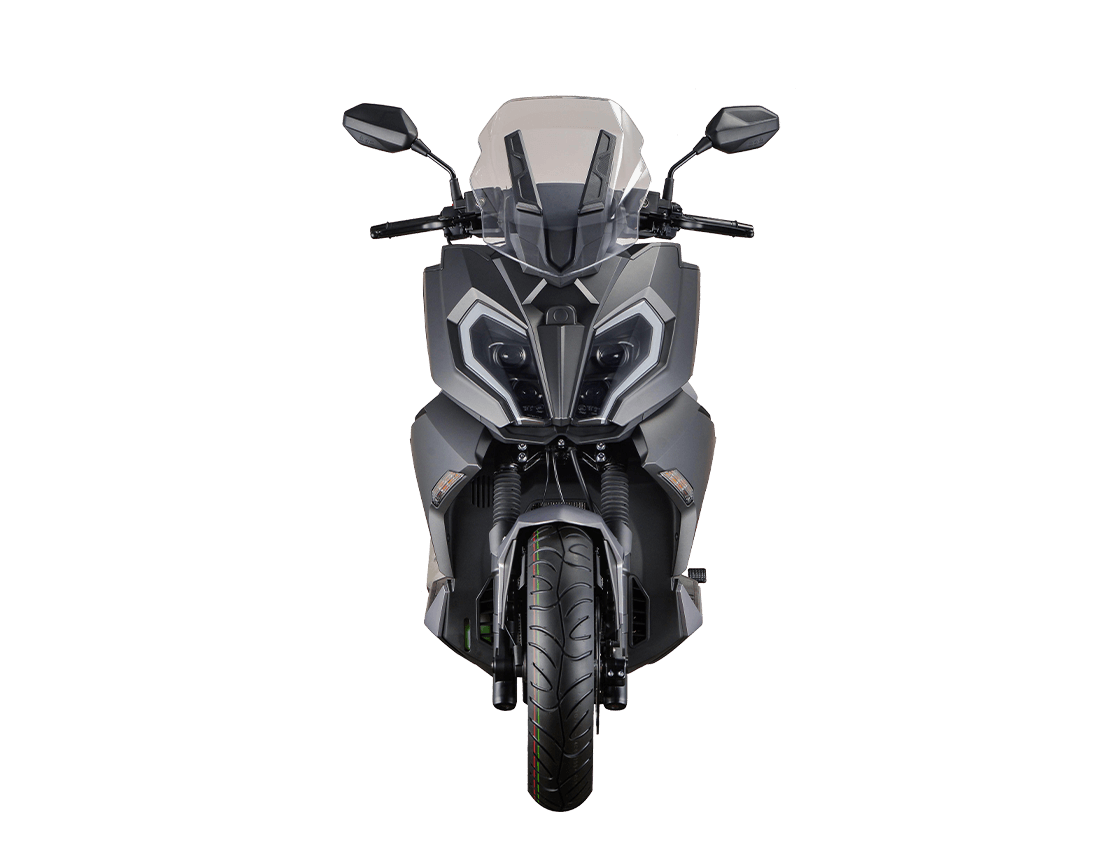

T15-STORM V

T15-STORM V

400 ABS 300 ABS 250 ABS 200 CBS 200 ABS

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

Max. Power Output (kw/rpm)

0

0r/min

Maximum Speed (km/h)

0

Max. Torque (Nm/rpm)

0

0r/min

Wheelbase (mm)

0

ADVANTAGES

SPECIFICATIONS

T15 400CC ABS

T15 300CC ABS

T15 250CC ABS

T15 200CC CBS

T15 200CC ABS

Engine

Engine Type

OHC,Liquid-cooled single-cylinder 4 VALVE

Engine Displacement

393 CC

Max. Power Output

27 KW / 7500 rpm

Max. Torque

35 Nm / 5500 rpm

Emission Standards

Chassis,Dimensions and Weight

Length x Width x Height(mm)

2230 x760x1330

Seat Height(mm)

780

Wheelbase(mm)

1624

Kerb Weight (kg)

211.5

Wheels, Suspension and Brakes

Front brake

Dual disc Φ260mm / ABS (opposed four piston)

Rear brake

Single disc Φ230mm / ABS (opposed two piston)

Tyres (Front/Rear)

Fr:120/70-15 Rr:140/70-14

Suspension Front

Telescopic fork

Suspension Rear

Gasbag-type, adjustable double shock absorbers

Engine

Engine Type

OHC,Liquid-cooled single-cylinder 4 VALVE

Engine Displacement

278CC

Max. Power Output

19.4 KW / 8250 rpm

Max. Torque

25.7 Nm / 6250 rpm

Emission Standards

Chassis,Dimensions and Weight

Length x Width x Height(mm)

2230 x760x1330 mm

Seat Height(mm)

760

Wheelbase(mm)

1600

Kerb Weight (kg)

172

Wheels, Suspension and Brakes

Front brake

Dual disc Φ260mm / ABS (opposed four piston)

Rear brake

Single disc Φ230mm / ABS (opposed two piston)

Tyres (Front/Rear)

Fr:120/70-15 Rr:140/70-14

Suspension Front

Telescopic fork Φ37mm

Suspension Rear

Gasbag-type, adjustable double shock absorbers

Engine

Engine Type

OHC,Liquid-cooled single-cylinder 4 VALVE

Engine Displacement

244CC

Max. Power Output

18.5 KW / 8250 rpm

Max. Torque

22.5 Nm / 6250 rpm

Emission Standards

Chassis,Dimensions and Weight

Length x Width x Height(mm)

2230 x760x1330

Seat Height(mm)

760

Wheelbase(mm)

1600

Kerb Weight (kg)

172

Wheels, Suspension and Brakes

Front brake

Dual disc Φ260mm / ABS (opposed four piston)

Rear brake

Single disc Φ230mm / ABS (opposed two piston)

Tyres (Front/Rear)

Fr:120/70-15 Rr:140/70-14

Suspension Front

Telescopic fork Φ37mm

Suspension Rear

Gasbag-type, adjustable double shock absorbers

Engine

Engine Type

OHC,Liquid-cooled single-cylinder 4 VALVE

Engine Displacement

189CC

Max. Power Output

14 KW / 8250 rpm

Max. Torque

16.5 Nm / 6500 rpm

Emission Standards

Chassis,Dimensions and Weight

Length x Width x Height(mm)

2230 x760x1330

Seat Height(mm)

760

Wheelbase(mm)

1600

Kerb Weight (kg)

172

Wheels, Suspension and Brakes

Front brake

Single disc Φ260mm CBS

Rear brake

Single disc Φ220mm CBS

Tyres (Front/Rear)

Fr:120/80-14 225kpa Rr:130/70-13 250kpa

Suspension Front

Telescopic fork Φ37mm

Suspension Rear

Dual absorber

Engine

Engine Type

OHC,Liquid-cooled single-cylinder 4 VALVE

Engine Displacement

189 CC

Max. Power Output

14 KW / 8250 rpm

Max. Torque

16.5 Nm / 6500 rpm

Emission Standards

Chassis,Dimensions and Weight

Length x Width x Height(mm)

2230 x760x1330

Seat Height(mm)

760

Wheelbase(mm)

1600

Kerb Weight (kg)

172

Wheels, Suspension and Brakes

Front brake

Single disc Φ260mm ABS

Rear brake

Single disc Φ220mm ABS

Tyres (Front/Rear)

Fr:120/80-14 225kpa Rr:130/70-13 250kpa

Suspension Front

Telescopic fork Φ37mm

Suspension Rear

Dual absorber
