T SERIES T SERIES
T16-XSUV
T16-XSUV
Max. Power Output (kw/rpm)
0
0r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0r/min
Wheelbase (mm)
0
Max. Power Output (kw/rpm)
0
0 r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0 r/min
Wheelbase (mm)
0
Max. Power Output (kw/rpm)
0
0r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0r/min
Wheelbase (mm)
0
Max. Power Output (kw/rpm)
0
0r/min
Maximum Speed (km/h)
0
Max. Torque (Nm/rpm)
0
0r/min
Wheelbase (mm)
0
ADVANTAGES
SPECIFICATIONS
Engine
Engine Type
OHC,Liquid-cooled single-cylinder 4 VALVE
Engine Displacement
278CC
Max. Power Output
19.4 KW / 8250 rpm
Max. Torque
25.7 Nm / 6250 rpm
Emission Standards
Euro V+
Chassis,Dimensions and Weight
Length x Width x Height(mm)
2090 x765x1560
Seat Height(mm)
790
Wheelbase(mm)
1530
Kerb Weight (kg)
177
Wheels, Suspension and Brakes

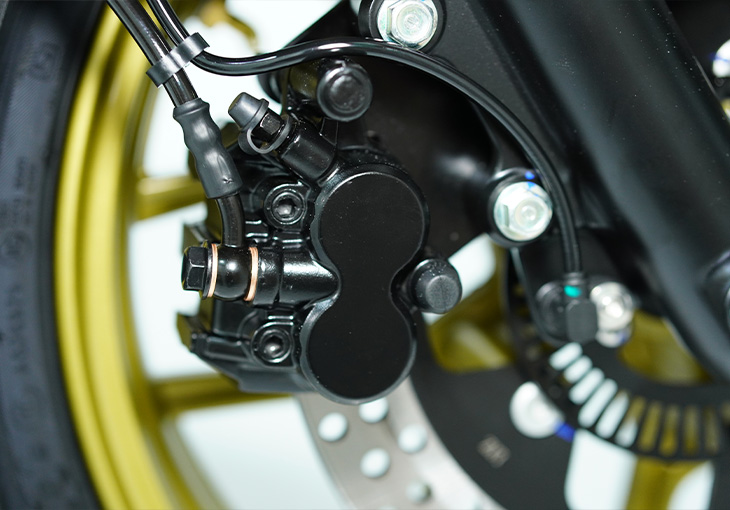

Front brake
Single disc Φ260mm ABS+TCS
Rear brake
Single disc Φ240mm ABS+TCS
Tyres (Front/Rear)
Fr:120/70-15 Rr:140/60-14
Suspension Front
Hydraulic

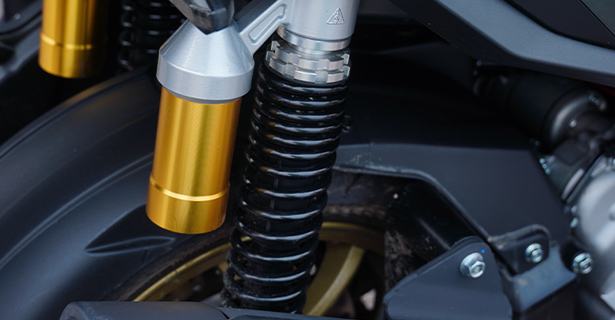

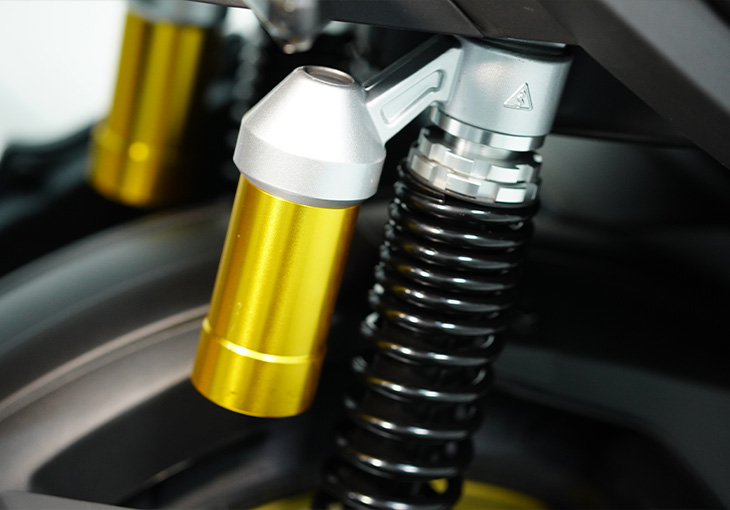

Suspension Rear
Gasbag
Engine
Engine Type
OHC,Liquid-cooled single-cylinder 4 VALVE
Engine Displacement
244CC
Max. Power Output
18.5 KW / 8250 rpm
Max. Torque
22.5 Nm / 6250 rpm
Emission Standards
Euro V +
Chassis,Dimensions and Weight
Length x Width x Height(mm)
2090 x765x1560
Seat Height(mm)
790
Wheelbase(mm)
1530
Kerb Weight (kg)
177
Wheels, Suspension and Brakes
Front brake
Single disc Φ260mm ABS+TCS
Rear brake
Single disc Φ240mm ABS+TCS
Tyres (Front/Rear)
Fr:120/70-15 Rr:140/60-14
Suspension Front
Hydraulic
Suspension Rear
Gasbag
Engine
Engine Type
Liquid-cooled single-cylinder 4 Valve Auto start-stop Silence start
Engine Displacement
149.6CC / 174CC
Max. Power Output
11.5 / 13.6 KW / 8500 rpm
Max. Torque
14.7 / 17.2 Nm / 6500 rpm
Emission Standards
Euro V
Chassis,Dimensions and Weight
Length x Width x Height(mm)
2090 x765x1560
Seat Height(mm)
780
Wheelbase(mm)
1530
Kerb Weight (kg)
157
Wheels, Suspension and Brakes
Front brake
Single disc Φ260mm ABS+TCS
Rear brake
Single disc Φ220mm ABS+TCS
Tyres (Front/Rear)
Fr:120/70-14 Rr:130/70-13
Suspension Front
Hydraulic
Suspension Rear
Hydraulic
Engine
Engine Type
OHC,Liquid-cooled single-cylinder 2 VALVE
Engine Displacement
124.9CC
Max. Power Output
8.3 KW / 8500 rpm
Max. Torque
11.2 Nm / 6500 rpm
Emission Standards
Euro V+
Chassis,Dimensions and Weight
Length x Width x Height(mm)
2090 x765x1560
Seat Height(mm)
780
Wheelbase(mm)
1530
Kerb Weight (kg)
155
Wheels, Suspension and Brakes
Front brake
Single disc Φ260mm ABS+TCS
Rear brake
Single disc Φ220mm ABS+TCS
Tyres (Front/Rear)
Fr:120/70-14 Rr:130/70-13
Suspension Front
Hydraulic
Suspension Rear
Hydraulic
